BD Series Overhead stirrer
BD Series Overhead stirrer
The BD Series Overhead stirrer
adopts a CNC stepless speed regulator, which is high-speed and
convenient, and can digitally display the operating speed, making the
machine safer and more reliable. It has advanced technology, low-noise
mechanical reduction structure, small size, and large output torque. It
is suitable for scientific research, colleges and universities, chemical
industry, pharmaceuticals, medical units and other purposes.
| Model | BD50 | BD100 | BD150 |
| Capacity | 20L | 40L | 60L |
| Speed range | 30~2200rpm | ||
| Speed display | LCD | ||
| Resolution | ±1rpm | ||
| Torque | 60N.cm | ||
| Max viscosity | 10000mPas | 50000mPas | 80000mPas |
| Diamter | 0.5-10mm | ||
| Exterior Dimension | 160x80x180 | ||
| Net weight | 2.6kg | 2.8kg | 3.0kg |
| Protect class | IP42 | ||
| RS232 | Yes | ||
| Voltage | AC220V50HZ/110V60HZ | ||
| Power | 60W | 120W | 160W |

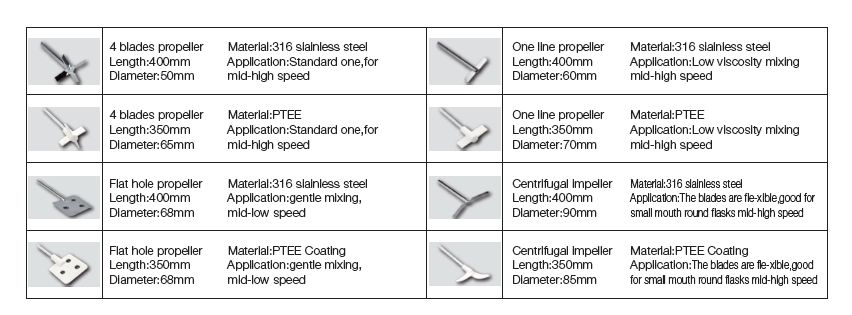

![250G1153320Q4[1].png](/static/upload/image/20260426/1777165842179772.png)
